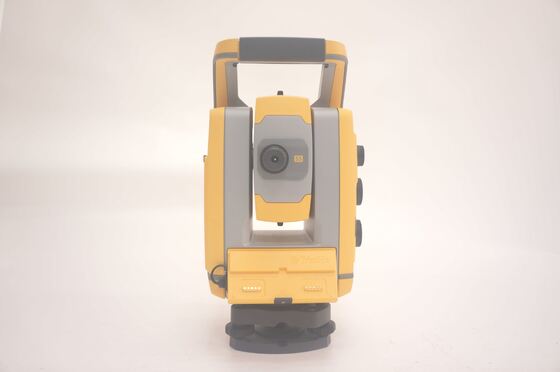

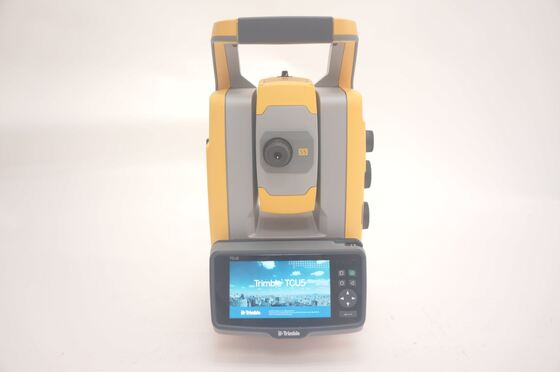

Trimble S5 1 Prime Robotic Total Station Surveying Absolute Encoder With Diametrical Reading

Brand Name:	CETU
MOQ:	1
Price:	$800-30000
Payment Terms:	T/T advance; Western union; MoneyGram,etc.
Supply Ability:	1000

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Model NO.:

Trimble S5 Robotic (1 Second)

Range Finding:

3-15km

After-Sales Service:

Professional Guidance

Warranty:

1 Year

Sensor Type:

Absolute Encoder With Diametrical Reading

Type:

Centered Dual-Axis

EDM:

Laser Class 1

Rotation Speed:

115degrees/Sec (128 Gon/Sec)

Clamps And Slow Motions:

Servo-Driven, Endless Fine Adjustmentcentering

Magnification:

30X

Transport Package:

Carton

Specification:

40*40*60 Cm

Trademark:

Trimble

Origin:

Sweden

HS Code:

9015800090

Production Capacity:

5000

Package Size:

40.00cm * 40.00cm * 60.00cm

Package Gross Weight:

12.000kg

Packaging Details:

Carton

Supply Ability:

1000

Highlight:

1 Prime Robotic Total Station

Robotic Total Station Surveying

Trimble S5 Total Station

Product Description

High Accuracy Trimble S5 1 Prime Robotic Total Station Diametrical Reading and Absolute Encoder for Surveying Instrument

Built on proven Trimble technologies--including Trimble SurePoint and MagDrive™ technology, and our DR Plus EDM--this is the no nonsense workhorse that works efficiently and dependably while maintaining the highest possible accuracy.

Everything you need to perform survey campaigns
Measure further and faster with the Trimble DR Plus EDM
Complete field-to-office solution for quick data capture and processing
Seamless integrated surveying with the Trimble GNSS receivers
Optional Trimble Sentinel device tracking solution

Compatible Software

Choose from a variety of Trimble controllers operating the feature rich, intuitive Trimble Access field software. Streamlined workflows guide crews through common project types, helping to get the job done faster with less distractions. Trimble Access workflows can also be customized to fit your needs.

Back in the office, trust Trimble Business Center software to help you check, process and adjust your optical, leveling, and GNSS data in one software solution.
No matter what Trimble instruments you use in the field, you can trust that Trimble Business Center office software will help you generate industry-leading deliverables

Optional Instrument Tracking

Trimble Sentinel puts an instrument tracking module, and powerful software right in the palm of your hand. When you want to track instruments, simply open the mobile app wherever you are, on any compatible device.

Trimble S5 1 Prime Robotic Total Station Surveying Absolute Encoder With Diametrical Reading 7

Performance	Angle measurement	Sensor type	Absolute encoder with diametrical reading
		Accuracy	1″(0.3 mgon), 2″(0.6 mgon) or 5″(1.5 mgon)
		Angle display (least count)	0.1″(0.01 mgon)
	Automatic level compensator	Type	Centered dual-axis
		Accuracy	0.5″(0.15 mgon)
		Range	±5.4′(±100 mgon)
	Distance measurement	Accuracy(ISO)	Prism mode	Standard	1mm+2ppm(0.003ft+2ppm)
		Accuracy(RMSE)	Prism mode	Standard	2mm+2ppm(0.0065ft+2ppm)
				Tracking	4mm+2ppm(0.013ft+2ppm)
			DR mode	Standard	2mm+2ppm(0.0065ft+2ppm)
				Tracking	4mm+2ppm(0.013ft+2ppm)
				Extended range	10mm+2ppm(0.033ft+2ppm)

Trimble S5 1 Prime Robotic Total Station Surveying Absolute Encoder With Diametrical Reading 8

Trimble S5 1 Prime Robotic Total Station Surveying Absolute Encoder With Diametrical Reading 9

Trimble S5 1 Prime Robotic Total Station Surveying Absolute Encoder With Diametrical Reading 10
