Nanjing Cetu Surveying Instrument Co., Ltd.
|
| Brand Name: | CETU |
| MOQ: | 1 |
| Price: | $1200-3000 |
| Payment Terms: | T/T advance; Western union; MoneyGram,etc. |
| Supply Ability: | 1000 |

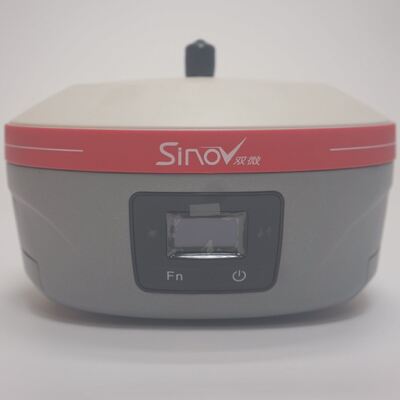

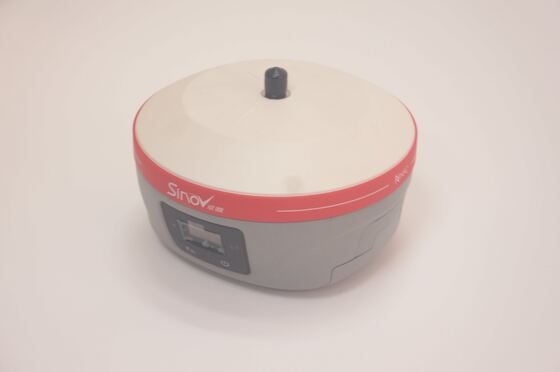

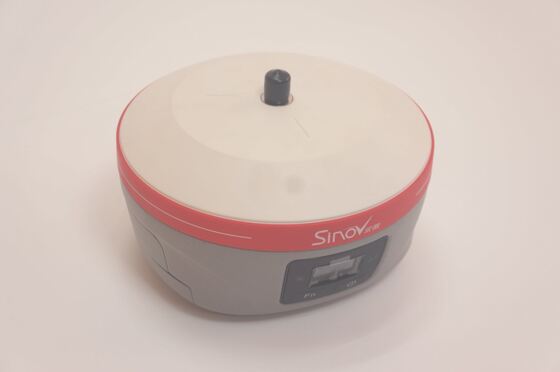

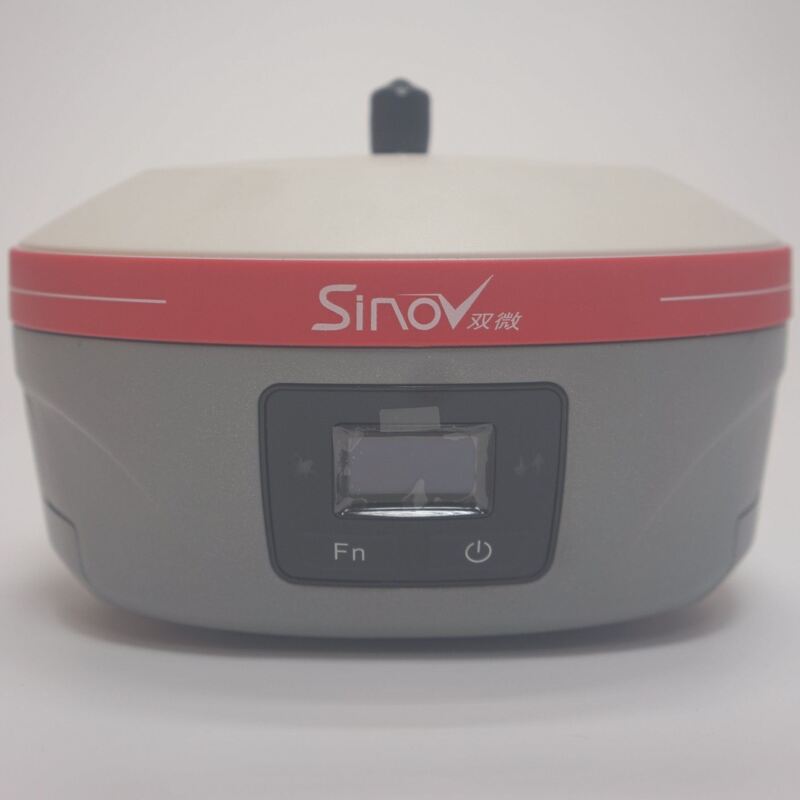

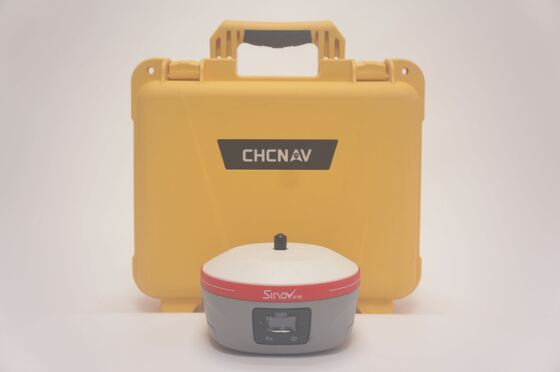

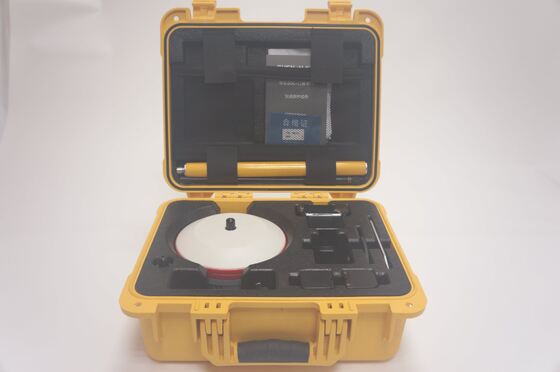

Sinov M1 professional base station, plug-in radio terminator, supports 5-star 16-band signal, adopts CTI data link concurrent communication technology, and starts the super dual-transmission mode with one key; Annual surveying and mapping flow; large-capacity lithium battery, super battery life, solve the problem of built-in radio mode battery life; support remote assistance, remote operation to help customers solve problems encountered during use and improve work efficiency.
| Receiver characteristics | Satellite tracking | GPS+BDS+Glonass+galileo+QZSS Support Beidou third-generation satellites support five-satellite sixteen-frequency |
| Operating system | Linux system | |
| Initialization time | <5s | |
| Initialize reliability | >99.99% | |
| Receiver appearance | Buttons | 1 dynamic/static switch button, 1 power button |
| Indicator light | 1 differential signal light, 1 satellite light | |
| Display screen | 1 LCD display screen | |
| Nominal accuracy | Static accuracy | Plane accuracy:±(2.5+ 0.5×10-6×D) mm |
| Elevation accuracy:±(5+0.5×10-6×D) mm | ||
| RTK accuracy | Plane accuracy:±(8 + 1×10-6×D) mm | |
| Elevation accuracy:±(15+ 1×10-6×D) mm | ||
| Stand-alone accuracy | 1.5m | |
| Code differential accuracy | Plane accuracy:±(0.25+ 1×10-6×D) m | |
| Elevation accuracy:±(0.5+ 1×10-6×D) m | ||
| Electrification parameters | Battery | Removable 14000mAh lithium battery, can support base station for working 12+ hours |
| External power supply | can be powered by DC power, can be powered by 220V AC power, can directly supply power through the radio (9-24) V DC |
|
| Physical characteristics | Size | Φ160.54 mm*103 mm |
| Weight | 1.73kg | |
| Material | Magnesium alloy AZ91D body | |
| Working temperature | -45ºC~+85ºC | |
| Storage temperature | -55ºC~+85ºC | |
| Waterproof & Dustproof | IP68 | |
| Anti-shock vibration | IK08 | |
| Anti-drop | Resist 2 meters free fall | |
| Data communication | I / O interface | 1 external UHF antenna port |
| One seven-pin data port interface, support power supply, differential data output |
||
| 1 nano sim card slot | ||
| Built-in esim | ||
| Radio | Built-in transceiver integrated radio power: up to 5W |
|
| Network module | Support 4G full Netcom | |
| Wi-Fi | 802.11 b/g/n | |
| Bluetooth | BT 4.0, backward compatible with BT2.x, the protocol supports Win/Android/IOS system |
|
| NFC | Support NFC flash connection | |
| Data output | Output format | NMEA 0183, binary code |
| Output method | BT/Wi-Fi/RS232/Radio | |
| Static storage | Storage format | Direct recording of HCN, HRC, RINEX, compressed RINEX |
| Storage room | Standard 8GB storage, support space protection | |
| Download method | FTP remote push + local one-click download, HTTP download |
|
| Receiver function | One-button start | BT/Wi-Fi/RS232/Radio |
| Remote upgrade | One-click remote upgrade to improve work efficiency | |
| Base station offset warning | When the location of the base station changes due to an unexpected situation, the hand-controller terminal immediately issues a warning |
