Nanjing Cetu Surveying Instrument Co., Ltd.
|
| Brand Name: | CETU |
| Model Number: | Hi-Target Ts5 |
| MOQ: | 1 |
| Price: | $1200-3000 |
| Payment Terms: | T/T advance; Western union; MoneyGram,etc. |
| Supply Ability: | 1000 |

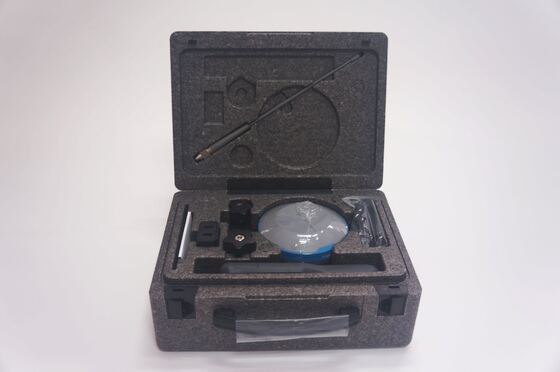

1. GNSS Receiver 2. UHF Antenna 3. Handheld controller 4. Tool Box 5. Warranty Card 6. Certification
7. Operation Manual 8. Bracket 9. Receiver Adapter 10. Battery 11.Data Cable 12. Charging Cable
| GNSS settings | 660 channels | |
| BDS: B1I, B2I, B3I, B1C, B2a | ||
| GPS: L1, L2, L5 | ||
| GLONASS: L1, L2 | ||
| GALILIEO: E1, E5a, E5b | ||
| QZSS: L1, L2, L5 | ||
| SBAS: support | ||
| Output format | ASCII.NMEA-0183, binary code | |
| Positioning output frequency | 1Hz-20Hz | |
| Static data format | GNS, Renix dual format static data | |
| Diffiencial format | CMR, RTCM2.X, RTCM3.0, RTCM3.2 | |
| Network mode | VRS, FKP, MAC, support NTRIP protocol | |
| System settings | Operating system | Linux |
| Start time | 3 second | |
| Data storage | Bulit-in 8GB ROM, support automatic cycle storage of static data | |
| Presion & Reliability | RTK positioning precision | Vertical: ±(8+1x10-6D)mm (D is the distance between the measured points) |
| Horizon: ±(15+1x10-6D)mm (D is the distance between the measured points) | ||
| Static positioning precision | Vertical: ±(2.5+0.5x10-6D)mm (D is the distance between the measured points) | |
| Horizon: ±(5+0.5x10-6D)mm (D is the distance between the measured points) | ||
| DGPS positioning precision | Vertical: ±0.25m+1ppm; Horizon: ±0.5m+1ppm | |
| SBAS positioning precision | 0.5m | |
| Initialization time | <10s | |
| Initialization reliability | >99.99% | |
| Communication unit | I/O port | Five-core interface, USB Type-C interface, SMA interface, Nano SIM card slot |
| Bulit-in eSIM card | Including 3 years of Internet access fee, no need to insert a card to access the Internet | |
| Built-in 4G network communication | TDD-LTE, FDD-LTE, WCDMA, EDGE, GPRS, GSM | |
| WIFI communication | 802.11 a/b/g/n access point & client-side mode | |
| Bluetooth communication | Bluetooth® 4.2/2.1+EDR, 2.4GHz | |
| Built-in radio | Built-in transceiver radio | |
| Power: 0.5W/1W/2W adjustable | ||
| Frequency: 410MHz-470MHz | ||
| Protocol: HI-TARGET, TRIMTALK450S, TRIMMARK III, TRANSEOT, SOUTH | ||
| Numbers of channels: 116 (16 of them are configurable) | ||
| External radio | All-protocol external radio | |
| Power: 10W/30W adjustable | ||
| Frequency: 403MHz-473MHz | ||
| Protocol: HI-TARGET, TRIMTALK450S, TRIMMARK III, TRANSEOT, SOUTH, CHC, SATEL | ||
| Transmission rate: 19.2 kbps/9.6 kbps adjustable | ||
| Numbers of channels: 116 (16 of them are configurable) | ||
| Sensor | Electric bubble | Smart centering |
| Tilt measurement | Built-in high-precision inertial navigation, Automatic posture compensation, No correction required, Anti-magnetic interference | |
| User Interface | Button | 2 buttons |
| Screen | 0.94 inches 240*120 high precision LED colorful screen | |
| LED indicators | Satellite indicator; signal indicator | |
| Function & Application | Advanced Function | ATG, NFC, WebUI, U disk firmware upgrade, network relay |
| Smart Application | Intelligent base station, intelligent voice, function self-test, fast charging, AR surveying, AR stakeout | |
| Remote Service | Online upgrade, remote control | |
| Cloud Service | Device management, location service, data analyse, collaborative work | |
| Physical Characters | Receiver's Battery | Built-in high-capacity lithium battery, 6800mAh/7.4V, can supply receiver's work for 10 hours |
| Fast Charging | USB PD3.0 super fast-charging, charging time< 3.5 hours; support power bank charging | |
| External power supply | 6-28V Wide voltage DC design, five-core interface | |
| Size | 156mm x 77mm | |
| Weight | ≤1.25kg(including battery) | |
| Power Consumption | 4.2W | |
| Material | The shell is made of magnesium alloy material | |
| Environment Characters | Waterproof & Dustproof | IP68 |
| Anti-drop | Resist 2 meters natural drop | |
| Relative Humidity | 100% non-condense | |
| Working Temperature | -30ºC~70ºC | |
| Storage Temperature | -40ºC~80ºC | |
