Nanjing Cetu Surveying Instrument Co., Ltd.
|
| Brand Name: | CETU |
| MOQ: | 1 |
| Price: | $15-30000 |
| Payment Terms: | T/T advance; Western union; MoneyGram,etc. |
| Supply Ability: | 1000 |

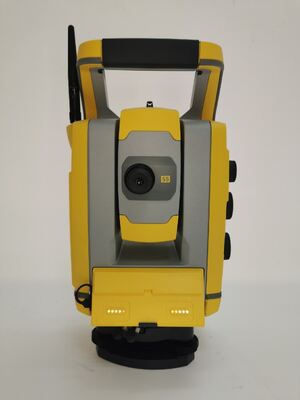

Built on proven Trimble technologies--including Trimble SurePoint and MagDrive™ technology, and our DR Plus EDM--this is the no nonsense workhorse that works efficiently and dependably while maintaining the highest possible accuracy.
Choose from a variety of Trimble controllers operating the feature rich, intuitive Trimble Access field software. Streamlined workflows guide crews through common project types, helping to get the job done faster with less distractions. Trimble Access workflows can also be customized to fit your needs.
Trimble Sentinel puts an instrument tracking module, and powerful software right in the palm of your hand. When you want to track instruments, simply open the mobile app wherever you are, on any compatible device.
| Performance | Angle measurement | Sensor type | Absolute encoder with diametrical reading | ||||
| Accuracy | 1″(0.3 mgon), 2″(0.6 mgon) or 5″(1.5 mgon) | ||||||
| Angle display (least count) |
0.1″(0.01 mgon) | ||||||
| Automatic level compensator | Type | Centered dual-axis | |||||
| Accuracy | 0.5″(0.15 mgon) | ||||||
| Range | ±5.4′(±100 mgon) | ||||||
| Distance measurement | Accuracy(ISO) | Prism mode | Standard | 1mm+2ppm(0.003ft+2ppm) | |||
| Accuracy(RMSE) | Prism mode | Standard | 2mm+2ppm(0.0065ft+2ppm) | ||||
| Tracking | 4mm+2ppm(0.013ft+2ppm) | ||||||
| DR mode | Standard | 2mm+2ppm(0.0065ft+2ppm) | |||||
| Tracking | 4mm+2ppm(0.013ft+2ppm) | ||||||
| Extended range | 10mm+2ppm(0.033ft+2ppm) | ||||||
